What is the cost per square meter of an industrial steel warehouse building?

An industrial steel warehouse building typically costs between USD 25 and USD 60 per square meter, depending on span, eave height, crane capacity, steel grade, surface treatment and cladding. A standard Q355B frame with hot-dip galvanizing and single-skin cladding sits at the lower end, while multi-span buildings with cranes, mezzanines or insulated sandwich panels sit higher. Welldone Steel provides itemized FOB/CIF quotations based on your drawings and site conditions.

What steel grades are used for prefabricated steel structures (Q355B vs ASTM A36 / Q235B)?

Welldone Steel fabricates primary framing (columns and rafters) from Q355B (equivalent to S355JR) structural steel by default, with Q235B or ASTM A36 available for secondary members. Q355B offers a higher yield strength (about 355 MPa) than Q235B/A36 (about 235-250 MPa), allowing lighter and more economical frames for large spans, while ASTM A36 is commonly specified for US-code projects. All steel is supplied with EN 10204 3.1 mill test certificates (MTC).

What international engineering standards do Welldone Steel buildings comply with (AISC 360, EN 1090, ISO 9001)?

Our design and fabrication comply with AISC 360 (US), EN 1090 / Eurocode 3 (EU CE marking) and ISO 9001:2015 quality management. Welding is executed to AWS D1.1 and EN ISO 3834. Buildings can also be engineered to local codes including GB 50017 (China), AS/NZS and IBC as required by your jurisdiction.

How fast can a custom steel warehouse or factory building be manufactured and exported?

After design approval, typical production lead time is 25-45 days for a standard warehouse or factory building, with more complex projects taking 45-60 days. Ocean shipping adds 15-35 days depending on the destination port. Overall, most international orders are delivered within 6-10 weeks from drawing sign-off, and a detailed production and shipping schedule is issued at the quotation stage.

What surface treatment options are available for corrosion protection (Hot-Dip Galvanizing HDG vs Epoxy Paint)?

We offer multiple corrosion-protection systems: (1) Hot-Dip Galvanizing (HDG) to ISO 1461 / ASTM A123, typically 60-85 microns, suitable for 25-50+ years in aggressive C4-C5 environments; (2) epoxy zinc-rich primer plus intermediate and topcoat paint systems (80-200 microns DFT) to ISO 12944, a cost-effective option for C2-C4 environments; and (3) hybrid systems such as HDG plus a decorative topcoat for maximum durability. The optimum system is selected based on your project corrosivity category and required design life.

How are structural steel buildings packaged and shipped for international ocean export?

All components are pre-fabricated, marked per erection drawings and packed in seaworthy bundles. Steel members are secured with steel strapping on pallets or cradles, small parts such as bolts and accessories are boxed, and loads are optimized for 40ft HQ / 40ft OT / 20ft containers or break-bulk shipping. We provide full export documentation (packing list, bill of lading, certificate of origin and mill test certificates), commonly ship on FOB or CIF terms, and share container loading photos before dispatch.

What warranty does Welldone Steel provide on structural steel buildings?

Our structural steel frames are backed by a standard manufacturing warranty, while our anti-corrosion coating systems (epoxy primer or Hot-Dip Galvanizing) are rated for 15-50+ years of protection depending on the treatment selected and the local environmental exposure.

Do you provide design and shop drawings for approval before production?

Yes. After receiving your requirements and site conditions, our engineering team produces structural design drawings and detailed shop (fabrication) drawings for your review and approval. Production begins only after written drawing approval, ensuring the building matches your specification exactly.

What payment terms and shipping documentation do you offer for international steel structure orders?

We offer standard international trade terms, typically a deposit via T/T with balance payment before shipment, and support Letter of Credit (L/C) arrangements for larger contracts. As an experienced steel structure manufacturer exporting to 40+ countries, we manage seaworthy export packing, container loading and full shipping documentation, and assist with customs clearance paperwork at the destination port.

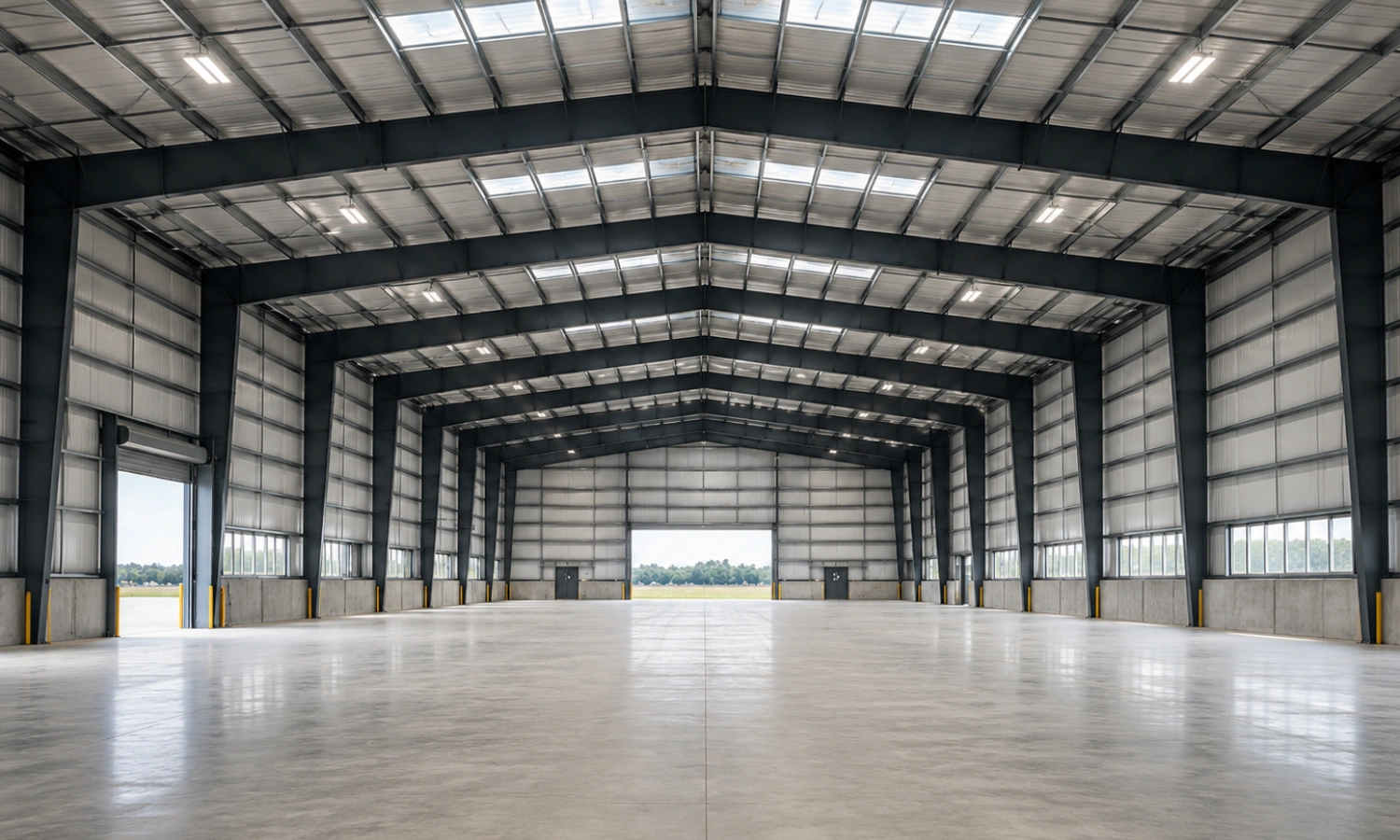

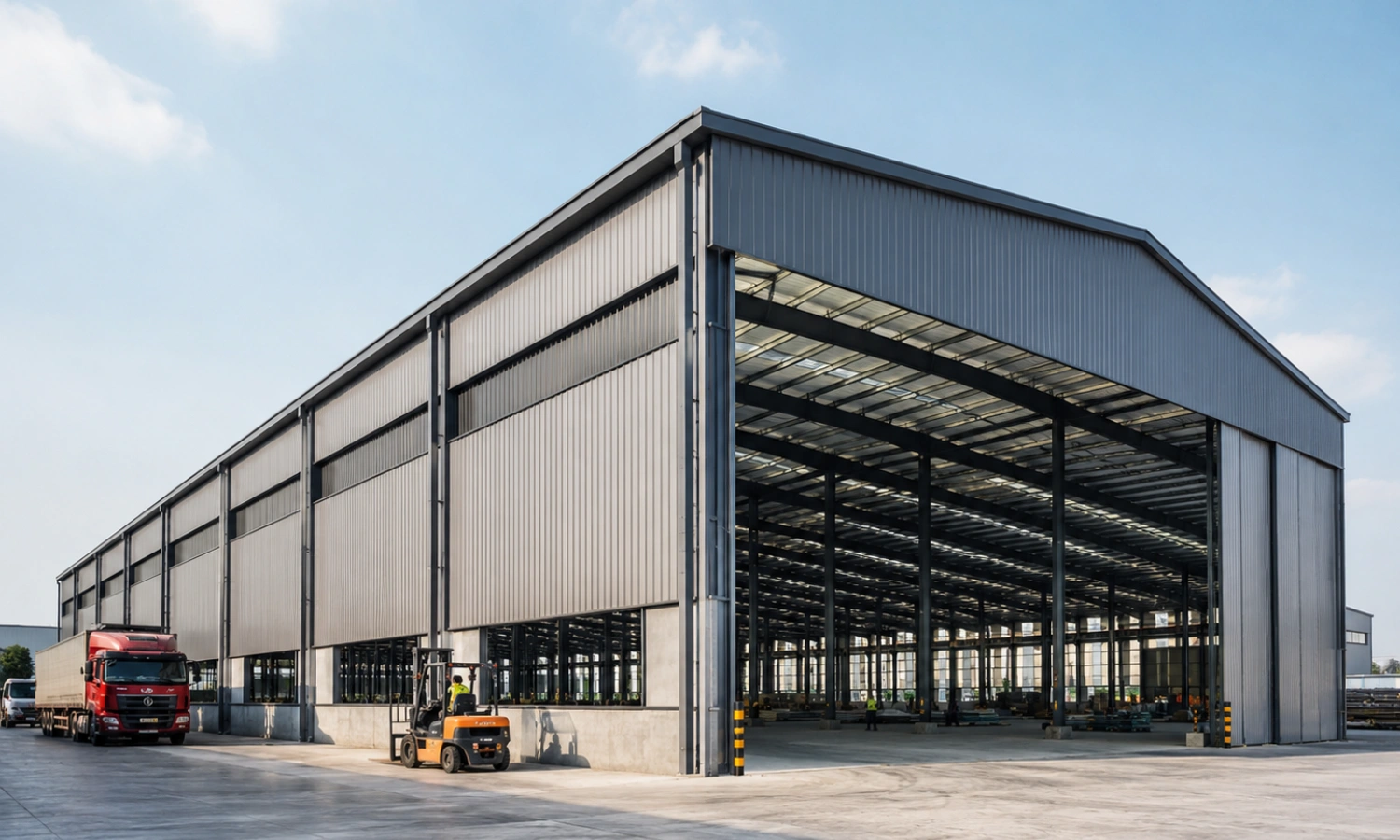

Large Span Steel Building

Large span steel building deliver wide, column-free interior space for projects that demand unobstructed working areas. Engineered for structural efficiency and design flexibility, they enable fast construction, low maintenance, and long-term reliability across warehouses, factories, aircraft hangars, logistics centers, sports facilities, and exhibition halls. Welldone Steel designs and manufactures customized large span structures built to international quality standards and project-specific engineering requirements.

Panel Thickness

75–200mm

PU/PIR commonly used

Temperature Range

+10°C to -40°C

project dependent

Vapor Control

Critical

avoid condensation

Value Level

High

steel + insulation + doors

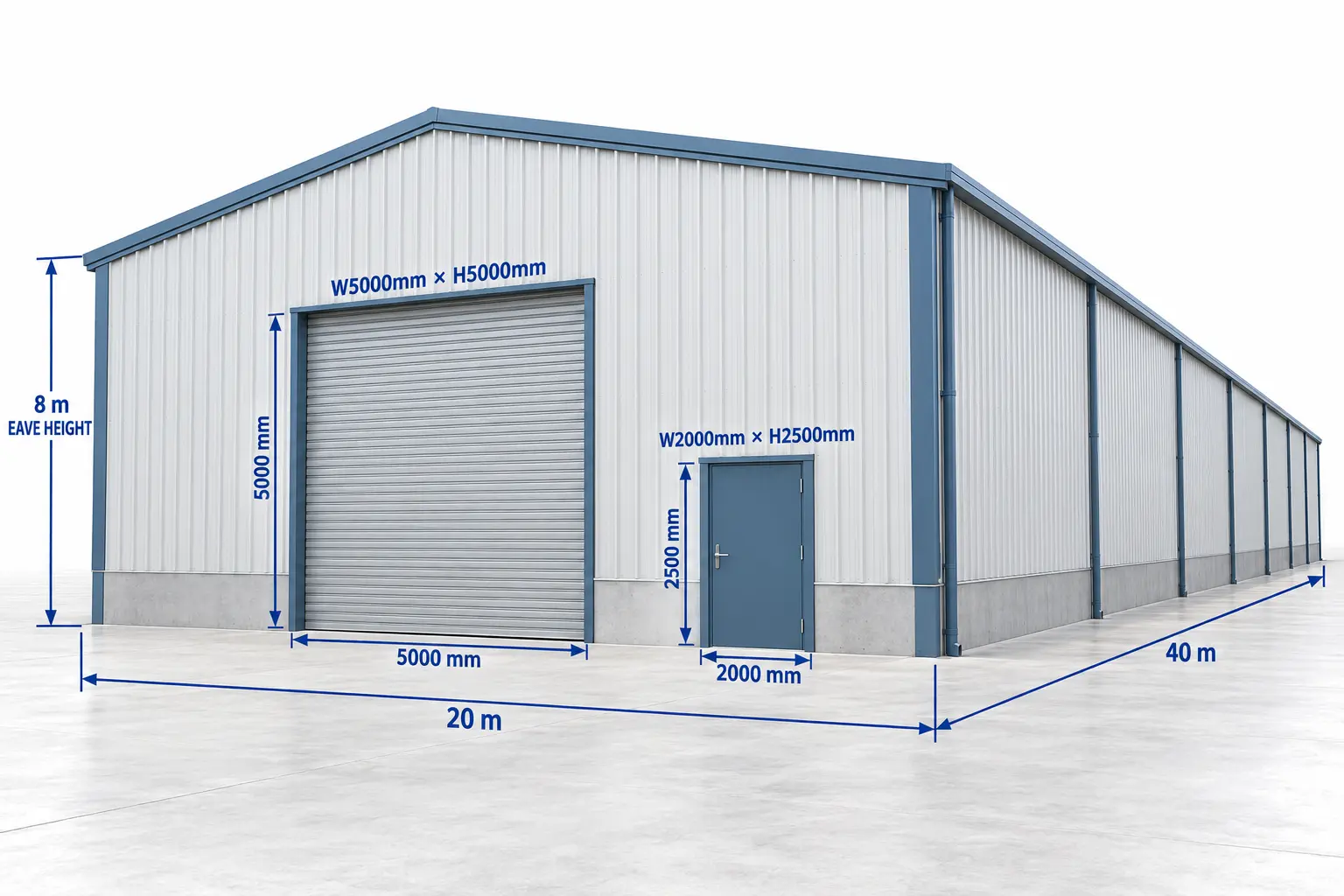

Medium Span Buildings

20 × 40 m

Configurable span, length, eave and ridge height with clear span or multi-span layout, moderate crane capacity, and easy future expansion.

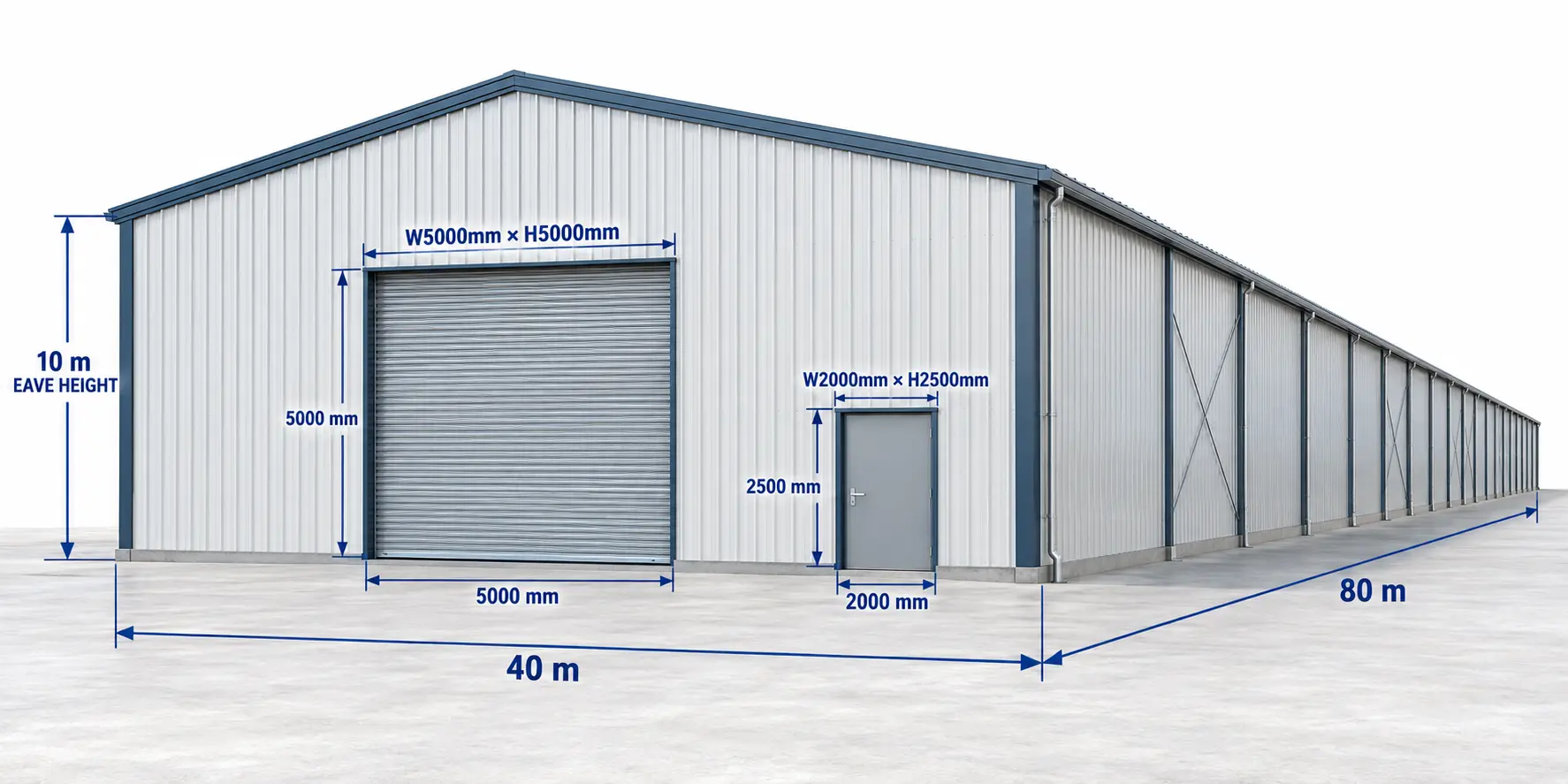

Large Span Buildings

40 × 80 m

Wide configurable span, length, eave and ridge height, clear or multi-span layout, strong crane capacity, and flexible future expansion capability.

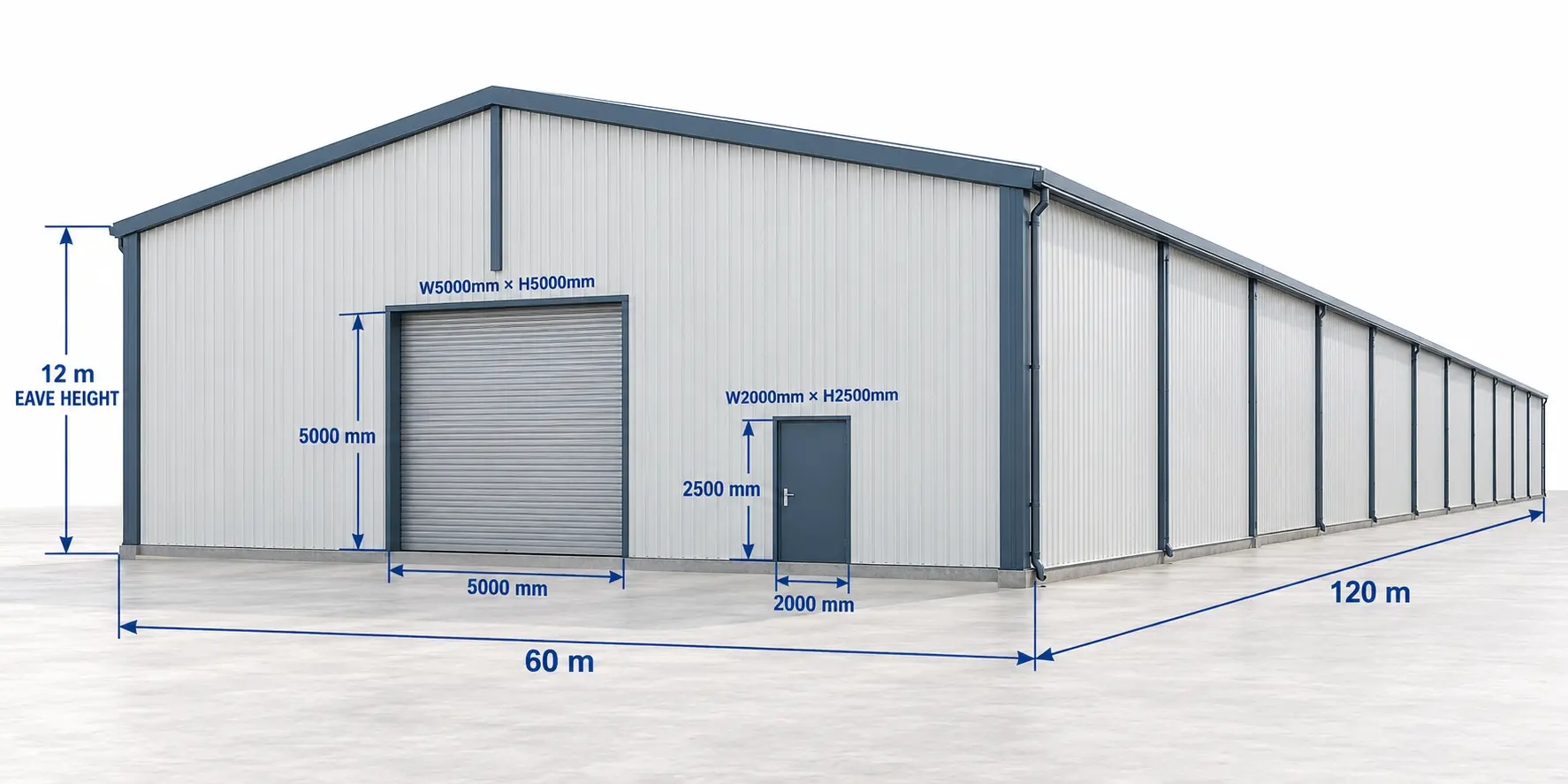

Extra-Wide Span Buildings

60 × 120 m

Maximum span, length, eave and ridge height options, single or multi-span layout, heavy-duty crane capacity, and reinforced future expansion capability.

Size Image 4 - Premium Structural Steel Component by Welldone Steel

Custom Clear Span Buildings

Customized

Fully custom span, length, eave and ridge height, tailored clear or multi-span layout, project-specific crane capacity, and planned future expansion.

Welldone Steel offers a full range of span configurations to match the scale and function of your project. Whether you need a moderate clear span for a standard warehouse or an extra-wide span for an aircraft hangar, our engineering team tailors every dimension to your operational needs.

Parameter

Specification / Range

Parameter

Range

Steel Grade

High-strength structural steel (Q235B/Q355B or equivalent international grades)

Main Frame

Welded H-section portal frames, trusses, or space frame systems

Roof System

Single-skin or sandwich panel roofing with structural purlins

Wall System

Sandwich panels, single-skin cladding, or masonry infill options

Surface Treatment

Hot-dip galvanizing and/or anti-corrosive primer with topcoat

Wind Load

Engineered per project location and applicable design codes

Snow Load

Calculated per regional climate data and structural code requirements

Seismic Resistance

Designed to relevant seismic zone standards

Design Life

Typically 30–50 years, dependent on materials and environment

Corrosion Protection

Multi-layer coating systems for long-term durability

Color Options

Wide range of RAL color choices for roof and wall panels

Certifications

ISO 9001, CE (project-dependent)

Large Span Steel Building Specifications

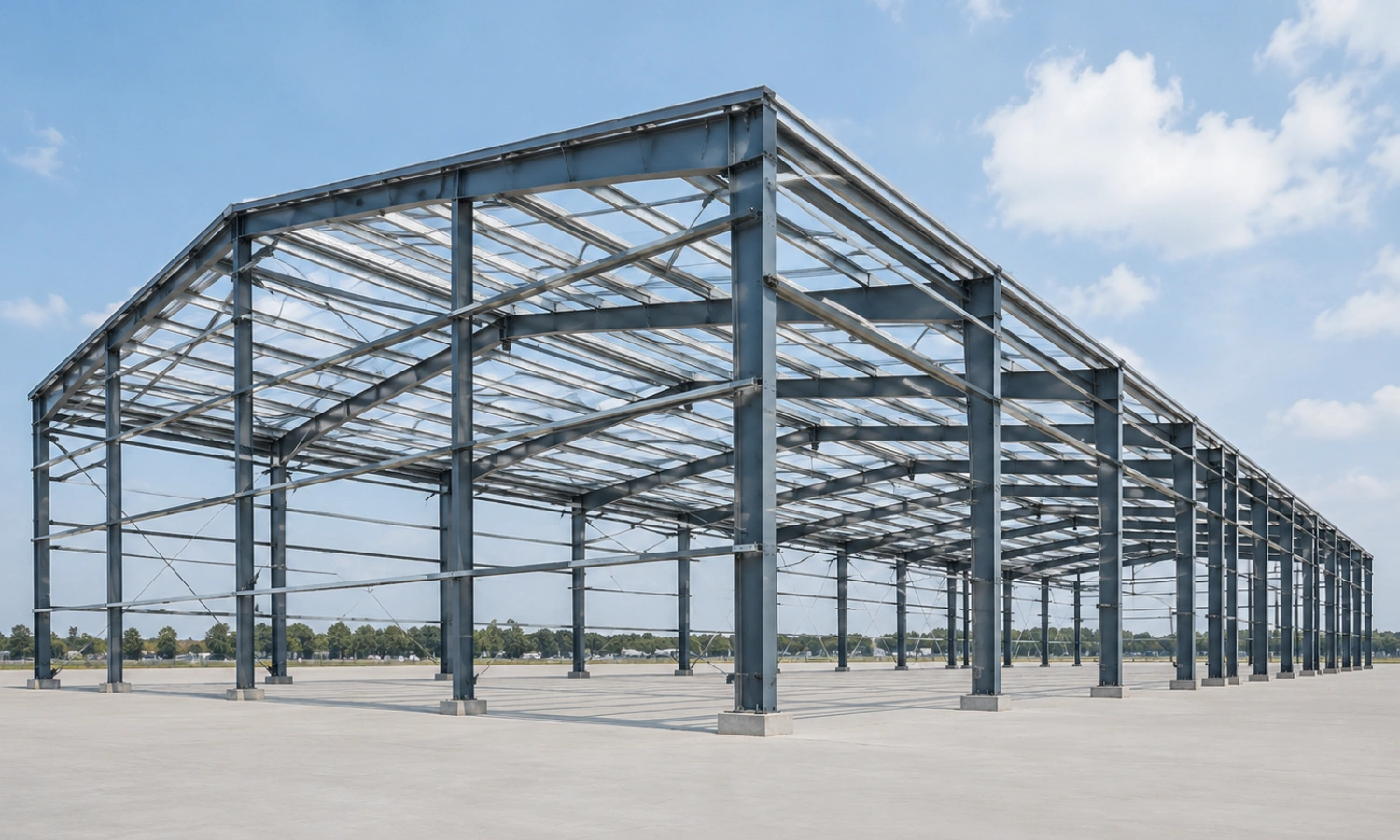

A large span steel building uses a strong steel frame to create open space without middle columns. Built with Q235B/Q355B steel and anti-corrosion coating, this clear span steel building is made to handle local wind, snow, and seismic loads. It works well as a clear span metal building or wide span steel building for warehouses and factories, with a design life of 30 to 50 years.

Customization Options

Roof Types: Gable, single-slope, arch, and multi-span roof configurations
Wall Cladding: Sandwich panels, corrugated sheeting, or composite systems
Insulation: Rock wool, glass wool, or polyurethane (PU) core panels for thermal and acoustic performance
Skylights: Polycarbonate or FRP panels for natural daylighting
Ventilation: Ridge vents, louvers, and turbine ventilators
Crane Systems: Single or double girder overhead crane support, engineered to required tonnage
Mezzanine Floors: Steel-framed mezzanines for added usable area
Loading Docks: Dock levelers, canopies, and vehicle access configurations
Doors & Windows: Sliding, sectional, and roller shutter doors; steel or aluminum window systems

Appearance Customization

Building color schemes across roof and wall panels
Multiple roof profile options
Corporate branding integration (fascia, signage zones, entrance features)

Certifications

ISO 9001 Quality Management System
CE Marking (where applicable to project region)

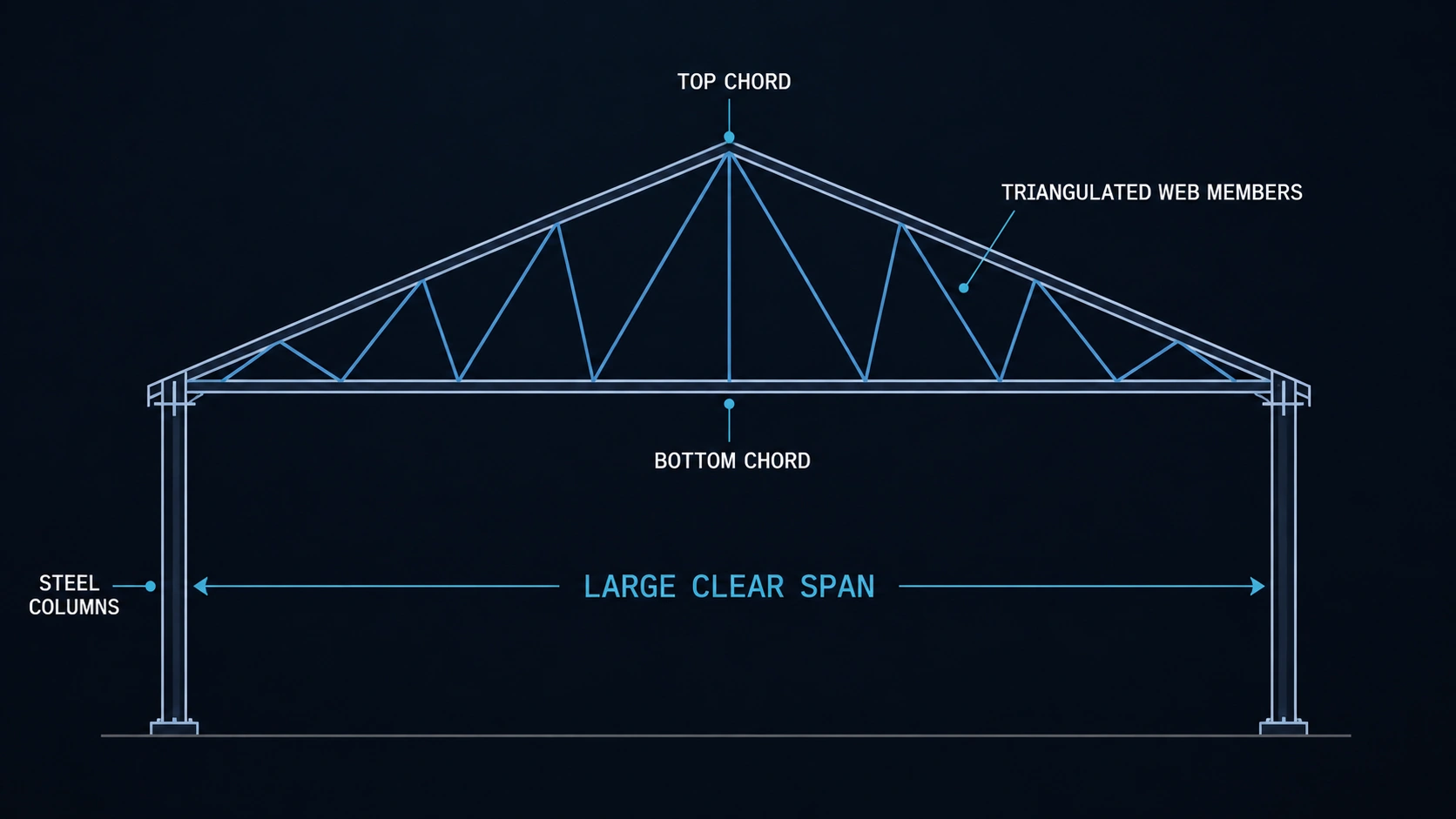

Large span steel buildings use engineered steel framing — typically portal frames, trusses, or space frame systems — to eliminate intermediate columns across wide interior areas. This structural approach maximizes usable floor space, simplifies equipment layout, and supports heavy operational loads, making it the preferred solution for industrial and commercial facilities that cannot compromise on open floor plans.

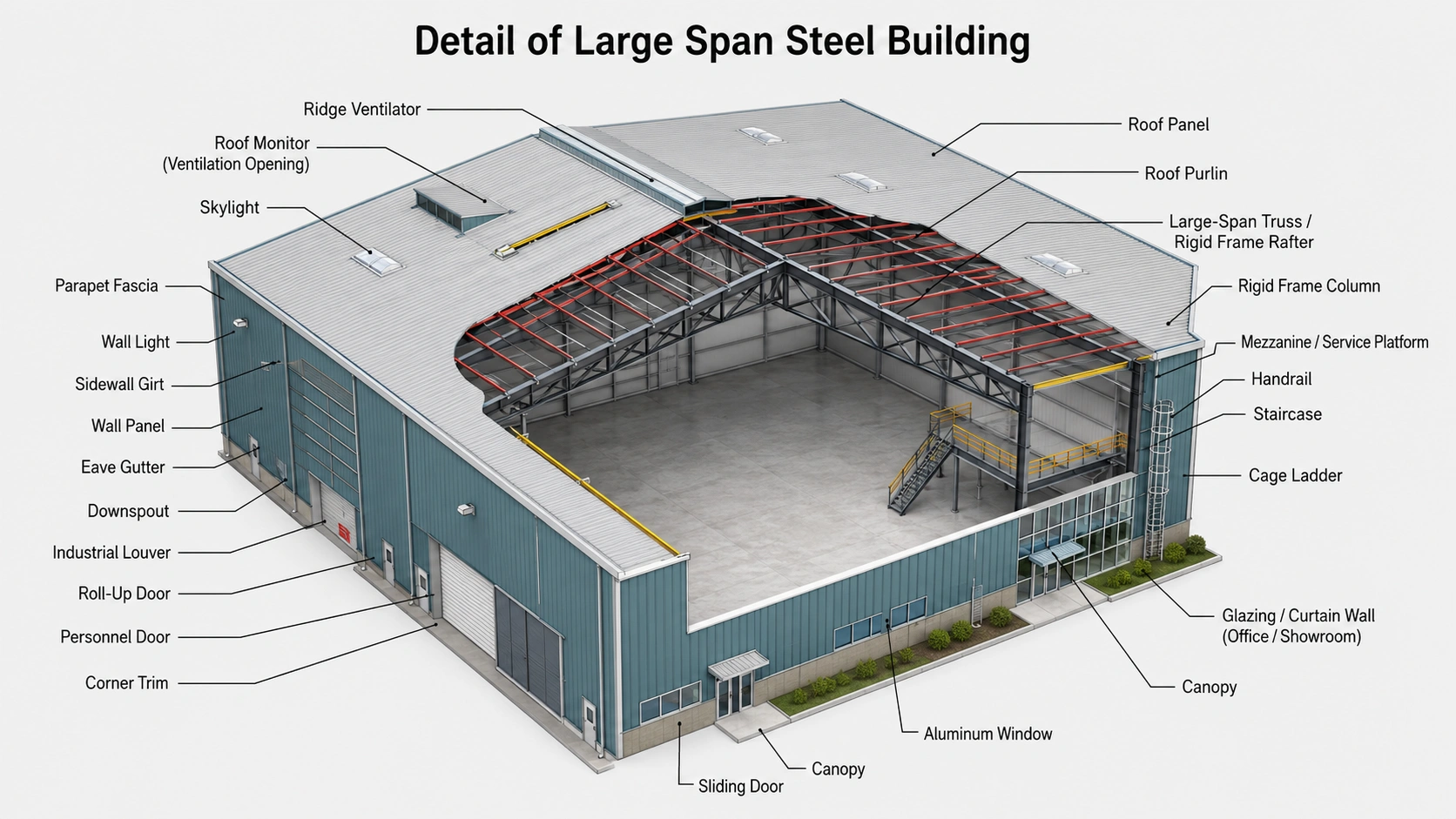

Structural Diagram

Large Span Steel Structure Overview

The diagram shows how a structural steel building works as one system. The main frame carries loads to the foundation, while purlins, girts, and bracing keep the structure stable. This is why an industrial steel building can offer wide open space, natural light, ventilation, and crane support. Understanding these steel building structures helps you plan the right layout for your project.

Rigid Frame Column: Main vertical member transferring roof and lateral loads down to the foundation.
Rigid Frame Rafter: Sloped roof beam spanning the building width, forming the frame's structural backbone.
Roof Purlin: Secondary horizontal members supporting roof panels between main rafters.
Sidewall Girts: Secondary horizontal members supporting wall panels between main columns.
Bracing System: Cross-bracing and rod bracing that provide lateral stability against wind and seismic loads.
Roof Monitor: Raised roof section that adds natural light and ventilation above the main roofline.
Curved Eave: Rounded roof-to-wall transition for improved appearance and water shedding.
Parapet Fascia: Raised edge panel concealing the roofline for a clean architectural finish.
Eave Strut: Structural member connecting rafter and column at the eave, supporting roof and wall panels.

Roofing System

Roof Panel: Primary weatherproofing layer, single-skin or insulated sandwich panel.
Ridge Ventilator / Rotary Vent: Roof-mounted units providing natural air exchange and heat release.
Skylight: Translucent roof panels allowing natural daylight into the interior.
Eave Gutter & Downspout: Rainwater collection channels and vertical drainage pipes along the roofline.
Canopy: Projecting roof extension over doors or loading areas for weather protection.

Wall System

Wall Panel: Exterior enclosure panels, single-skin or insulated sandwich construction.
Wall Light: Translucent wall panels providing daylight at the sidewall level.
Glazing: Glass panel sections for windows, viewing areas, or feature facades.
Aluminium Window: Framed window units for daylight and ventilation.
Fixed & Industrial Louvers: Fixed ventilation openings allowing airflow while keeping out weather.
Personnel Door / Roll-up Door / Double Sliding Door: Access openings sized for staff, vehicles, or equipment movement.
Corner Trim: Finishing panels at wall corners for a sealed, clean edge.
Partial Blockwall: Lower masonry wall section combined with steel wall panels above.
Lean-to Building: Smaller structure attached to the main building's sidewall for extra space.

Interior & Mezzanine Systems

Mezzanine: Elevated steel-framed floor adding usable interior area above ground level.
Rod Arcing: Tension rod bracing supporting mezzanine and interior framing.
Double Flight Staircase: Two-run stairway providing mezzanine or platform access.
Roof Platform & Handrail: Elevated walkway with safety railing for maintenance access.
Cage Ladder: Enclosed vertical ladder providing safe roof or platform access.

Foundation

Concrete Foundation: Reinforced concrete footings sized to structural load requirements.
Anchor Bolts: Connection hardware securing steel columns to the foundation.

Auxiliary Systems

Top Running Crane & Crane Rails: Overhead crane system supported on crane beams for material handling.
Gravent: Gravity-operated roof ventilator for passive air exchange.
Lighting: Interior and exterior lighting systems.
Fire Protection: Fire-rated systems and detection integration per code.
Drainage: Site and roof drainage management

The diagram is a simplified educational illustration for Large Span Steel Building. Use it to explain structure, function, and installation logic to website visitors or sales trainees.

Who Buys This Product

1b5f7e53 02a1 40d9 89da 126e585d4cbd - Premium Structural Steel Component by Welldone Steel

Aircraft Hangar

Wide, unobstructed clearance and tall eave heights safely house aircraft, supporting large door openings, maintenance equipment, and heavy aviation operational demands.

9e5c330d A48e 479b 8163 E03461222bd8 - Premium Structural Steel Component by Welldone Steel

Indoor Sports Hall

Column-free interiors give courts, arenas, and seating open floor area, with framing supporting high ceilings, lighting rigs, and acoustic treatments.

952eb60e Feb4 483a 9e00 34dc8c381801 - Premium Structural Steel Component by Welldone Steel

Exhibition Hall

Wide clear spans host large-scale displays and trade shows without obstructions, giving organizers full flexibility in layout and booth configuration.

F0bbb03d B645 407e Ae83 F109fd57c539 - Premium Structural Steel Component by Welldone Steel

Logistics Warehouse

Clear span framing maximizes floor space for racking, forklift movement, and material handling, optimizing storage density and throughput efficiently.

32d90ede 7698 40ed 8f1f 35ee0c44105e - Premium Structural Steel Component by Welldone Steel

Heavy Equipment Shelter

Robust framing supports wide bays and durable enclosures for storing and servicing heavy machinery, with clearance for equipment maneuvering.

11bd4219 E536 4f24 81e3 9e809a1be5c8 - Premium Structural Steel Component by Welldone Steel

Bulk Material Storage

Column-free storage volumes suit bulk commodities, with structural systems handling high floor loads and integrated conveyor or crane systems.

Not sure which span size fits your project? Get a free structural consultation and custom quote from our engineering team within 24 hours.

Factory

Mali Steel factory Building Project

Mali ,Bamako

3000m2.

93,508Kg

2026 Year

Factory Steel Building Mali

commercial

Cizao Town Steel structure Vegetable Market Project

Quanzhou, Fujian, China

2,428㎡

260 Tons

2026 Year

Cizao Town Steel Vegetable Market Project

storage

Steel Shed & Storage Project

Melbourne, Australia

3,200㎡

210 Tons

2024 Year

Steel Shed Storage Project

145d35e4 5daf 4bb5 A7d2 6cf96283ec98 - Premium Structural Steel Component by Welldone Steel

Factory, storage

Large Span Steel Building Project

United Arab Emirates

14,000㎡

1,050 Tons

2025 Year

Large Span Steel Building Project

Company Introduction

With 15+ years in steel structure manufacturing, Welldone Steel designs and builds high-quality large span steel buildings for industrial, logistics, aviation, and sports projects worldwide. ISO 9001-certified, we deliver customized, cost-efficient clear span solutions tailored to each project.

Why Choose Our Large Span Steel Building

Maximum Clear Span Design Engineered to create wide, column-free interior spaces that improve workflow, equipment movement, storage efficiency, and operational flexibility.

Fully Customized Building Solutions Available in various span widths, heights, roof systems, crane capacities, insulation options, and layouts to suit diverse industrial and commercial applications.

High Structural Strength & Stability Manufactured with premium structural steel and engineered to withstand wind, snow, seismic, and operational loads for long-term performance.

Fast Construction & Reduced Project Costs Precision-fabricated components enable faster installation, lower labor requirements, and shorter construction schedules than conventional building methods.

Flexible & Future-Ready Design Modular steel systems allow easy expansion, interior modifications, and equipment upgrades as business needs evolve.

Engineered for Long-Term Reliability Corrosion-resistant finishes, strict quality control, and international engineering standards ensure dependable performance with minimal maintenance throughout the building's service life.

Related Products

Explore our related steel structure products designed for durability, strength, and versatile industrial applications.

Steel Shed Storage

No data was found

View Details

Steel Shed Storage

Steel Warehouse Building

Prefabricated warehouse buildings

Large span structure

Fast installation

View Details

Steel Warehouse Building

Steel Workshop Building

Industrial workshop buildings

Heavy-duty steel frame

Custom design

View Details

Steel Workshop Building

Commercial Steel Building

Shopping mall

Office building

Showroom structure

View Details

Commercial Steel Building

Agriculture/Farm Building

Airport

Stadium

Exhibition hall

View Details

Agriculture Farm Building

Steel Factory Building

Modular structure

Easy transportation

Cost-effective solution

View Details

Steel Factory Building

FAQ

Frequently Asked Questions

What is a large span steel building?

A large span steel building is a steel-framed structure — using portal frames, trusses, or space frames — built to cover wide interior areas with few or no interior columns, maximizing open floor space for warehouses, hangars, and industrial facilities.

What is the difference between a large span steel building and a clear span steel building?

Large span refers to a building’s overall width category, while clear span means the structure has zero interior columns across that width. A large span building can be single clear span or multi-span; a clear span building is always fully column-free.

What are the advantages of a clear span steel building?

Clear span steel buildings offer unobstructed floor space, easier equipment movement, faster construction, simpler future reconfiguration, and better support for overhead cranes and large machinery compared to buildings with interior columns.

What industries use large span steel structures?

Large span steel structures are used in aviation, logistics and warehousing, manufacturing, sports and recreation, exhibitions and events, agriculture, and heavy industry — anywhere wide, open floor space is essential to operations.

How wide can a large span steel building be?

Large span steel buildings can range from moderate widths for standard warehouses to extra-wide spans exceeding 60–100 meters for aircraft hangars and arenas, depending on structural design, steel grade, and project requirements.

Can large span steel buildings support overhead cranes?

Yes. Large span steel buildings can be engineered with reinforced columns, crane beams, and crane rails to support single or double girder overhead crane systems, sized to the project’s specific lifting and load requirements.

How long does it take to construct a large span steel building?

Construction time varies by size and complexity, but prefabricated steel buildings are much faster than traditional construction since components are factory-fabricated in advance and simply assembled on-site.

Why choose a prefabricated large span steel building over traditional construction?

Prefabricated large-span steel buildings offer faster construction, lower labor costs, consistent factory quality, and easier future expansion, while requiring less on-site construction time and minimizing project delays.
